Are you struggling to find components for your hearing aid design? The tiny coils are often a major roadblock, failing to meet performance specs in a limited space.
A hearing aid coil is a critical component that performs two main functions. Inside the device, a miniature coil helps create sound. In the charging case, a larger coil enables convenient wireless charging by receiving power electromagnetically.
As an ISO-certified coil manufacturer, I've seen firsthand how these tiny components can make or break a product. They are the unsung heroes of modern audiology technology. We will look at both the miniature coil1s that produce sound and the wireless coils that provide power. Let's explore how the right coil partner can solve your biggest design challenges.
How Can You Fit So Much Power into a Tiny Hearing Aid Coil?
Your engineers are struggling with miniature coil1 designs. They are either too big for the hearing aid unit or lack the required number of turns for clear audio.

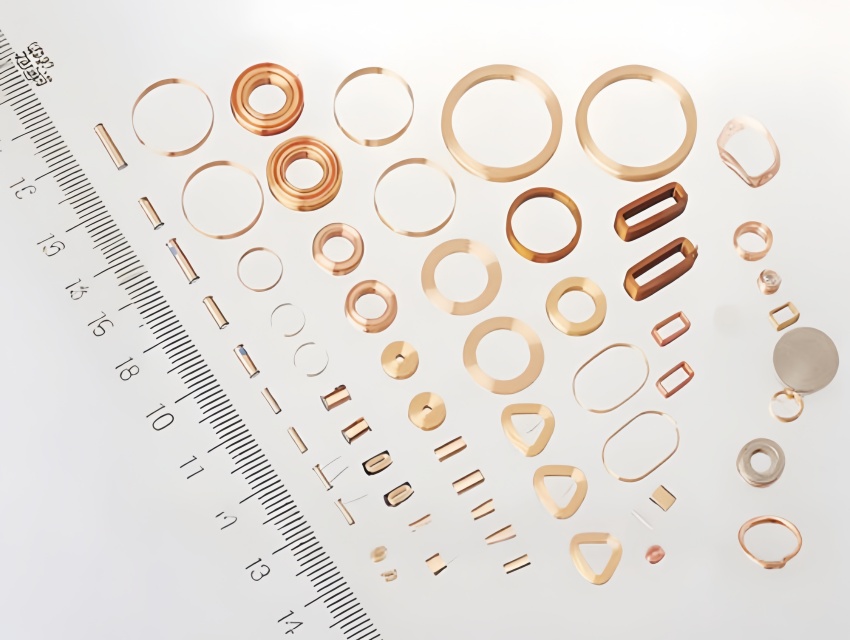

You can achieve high performance in a tiny coil by using ultra-fine wire, specialized winding machines, and precise tension control. This combination allows for a maximum number of turns in an incredibly small space, which is key for balanced armature driver2s.
I remember a project that really tested our team's abilities. A client from Singapore came to us with a big problem. They were designing a new hearing aid with a balanced armature driver, but they couldn't find a supplier to make the miniature coil1. The design required a huge number of turns in a space that was only a few millimeters wide. Every supplier they talked to said it was impossible. The project was completely stalled. This is a common story in the world of miniature electronics. The real challenge is not just making something small, but making it powerful and reliable.
The Challenge of Miniaturization
When you make a coil smaller, you have less space for the wire. For a balanced armature driver to work well, it needs a specific magnetic field, which is generated by the number of turns in the coil. So, you have two conflicting requirements: a very small size and a very high turn count. This is where standard manufacturing processes fail. The wire is too thick, or the winding process isn't precise enough, causing the coil to be too large or to fail quality checks.
Our Custom Solution
We love a good challenge. When the Singaporean client came to us, we broke the problem down. We knew we needed a three-part solution.
| Component | Our Approach | Benefit for the Client |
|---|---|---|
| Wire Material | We worked with our partner, ELEKTRISOLA, to source a custom 0.05mm ultra-fine wire. | This guaranteed a consistent wire diameter, which was critical for predictable performance and packing the maximum number of turns. |
| Winding Tension | We used our custom-built electronic tensioner for the winding process. | This provided stable and consistent tension, preventing the ultra-fine wire from breaking and ensuring a perfectly uniform coil shape every time. |
| Engineering Expertise | Our engineers combined these specialized materials and equipment with their deep knowledge of coil winding. | We successfully produced the miniature coil1 that met the client's strict electrical and mechanical specifications, unlocking their product design. |
The client was thrilled. We didn't just solve their immediate problem; we gave them a reliable component that allowed them to launch their product successfully. That was five years ago, and we are still their trusted partner for custom miniature coils3](1s">https://www.jhcoils.com/custom-antenna-coils/)1s today.
Is Wireless Charging the Future for Hearing Aids?
Users are frustrated with fumbling with tiny batteries and delicate charging ports. This can be a major barrier, especially for users with limited dexterity or eyesight.
Yes, wireless charging is rapidly becoming the standard. A wireless charging coil in the hearing aid or its case receives power from a charging pad. This removes the need for physical connectors, making charging simple and reliable for all users.

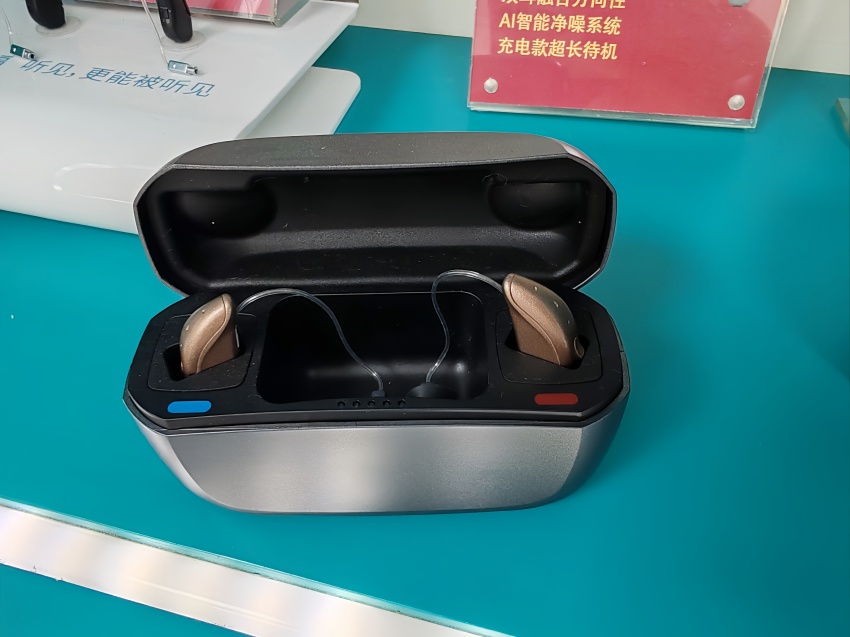

The second place you will find our coils in the hearing aid ecosystem is in the charging case. The user experience is everything for a modern electronic device. For hearing aid users, the daily task of charging their device needs to be as simple as possible. This is why many manufacturers are moving away from traditional plug-in chargers and embracing wireless technology. The principle is the same as the wireless charging4 for your phone or your wireless earbuds, and it's all made possible by a precisely designed set of coils. We have extensive experience designing these exact types of coils for many consumer electronics.
The Principle of Inductive Charging
Wireless charging, also known as inductive charging5, works using a simple and elegant principle. There are two coils involved: a transmitter coil in the charging base and a receiver coil6 in the device being charged (in this case, the hearing aid case). When you place the case on the base, the transmitter coil, powered by electricity, creates a magnetic field. The receiver coil6 inside the case captures this magnetic energy and converts it back into electricity to charge the battery. It’s a seamless transfer of power through the air, with no physical connection required.
Key Design Considerations for Charging Coils
Creating a great wireless charging4 experience requires more than just putting any coil into a box. The receiver coil6 must be designed perfectly for the application.
- Size and Form Factor: The coil must be thin and shaped to fit within the sleek, compact design of a modern hearing aid charging case. We can customize coils into various shapes, like circles or rectangles, to fit any product design.
- Charging Efficiency: The coil's design directly impacts how quickly and efficiently the device charges. We optimize our coils to transfer power with minimal energy loss, which reduces charging time and prevents the device from getting too warm.
- Durability and Reliability: The coil is a critical component that needs to last for the life of the product. Our advanced winding techniques and protective coatings ensure the coil is robust and can withstand the rigors of daily use.
- Alignment Forgiveness: Nothing is more frustrating than placing your device on a charger only to find out it wasn't perfectly aligned and didn't charge. We design our coil systems to have a good tolerance for placement, making the user experience simple and foolproof.
Conclusion
From creating sound to providing power, coils are essential to modern hearing aids. We provide custom miniature coils3](1s">https://www.jhcoils.com/custom-antenna-coils/)1s for audio and efficient receiver coil6s for wireless charging.
