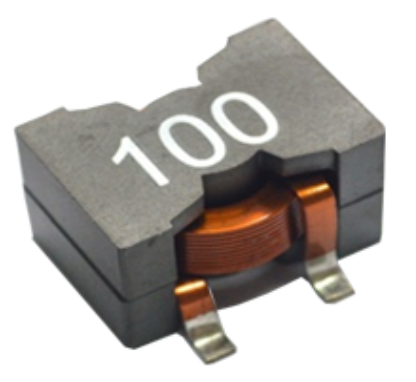

JHCOILS is a professional design, manufacturing, sales of high current flat coil inductance manufacturers. Our product size include 13*13mm (RS1360 series), 15*15mm (RS1580 series, RS1512 series), 18*18mm (RS189A series), 20*20mm (RS2014 series), 29*29mm (RS2915 series, RS2918 series), 33*33mm (RS3320 series, RS3325 series) and other series.
we can also provide branded high current inductor alternative, like Wurth or Coilcraft. At the same time, we can also customize various high-power and high current coil inductors.
Some KNOWLEDGE ABOUT High current inductors

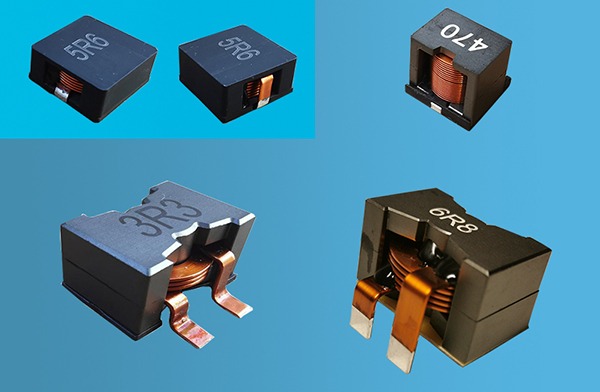

The high current inductor is an inductor which forms with a big size flat wire coil and magnet components, which is used high current requirement like automotive, new energy, power adapter, audio application…
High current inductors have all the features of all chip inductors, and also have the following features:

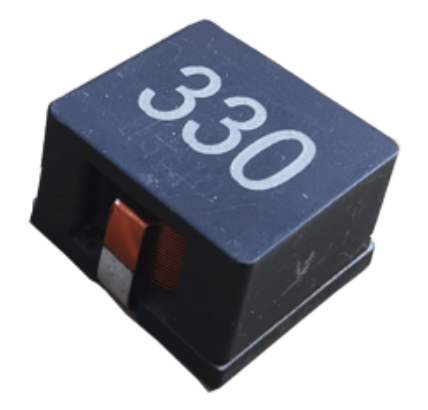

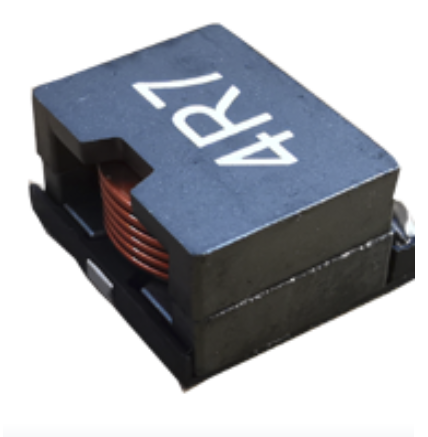

Product Size:15*15*8.0mm
Inductance Range: 0.4uH - 10uH
Saturation Current: 66A - 11A

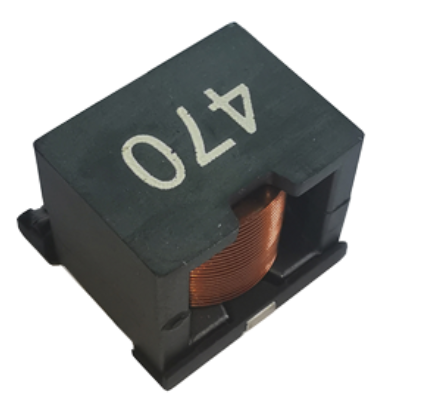

Product Size:15*15*12mm
Inductance Range: 10uH - 47uH
Saturation Current: 14A - 7.5A
Product Size:18*18*9mm
Inductance Range: 5.6uH - 470uH
Saturation Current: 29A - 8A
Product Size:22*24*14.5mm
Inductance Range: 1.5uH - 47uH
Saturation Current: 60A - 10A

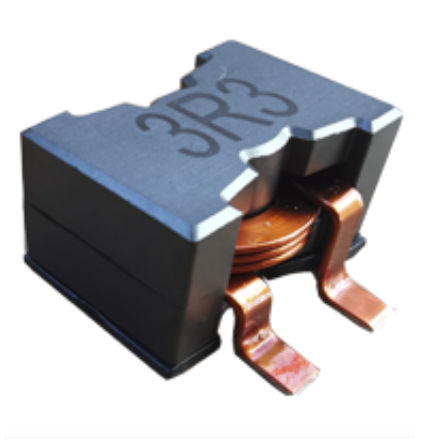

Product Size:29*19*15mm
Inductance Range: 2.2uH - 33uH
Saturation Current: 100A - 5.5A
Product Size:18*18*9mm
Inductance Range: 5.6uH - 470uH
Saturation Current: 29A - 8A
In the high-frequency state, the current is concentrated on the surface of the copper wire. The closer to the surface of the copper wire, the greater the current density. The higher the frequency, the shallower the skin depth, and the middle position of the round copper wire cannot be used reasonably. With flat coil, flat copper wire of appropriate thickness can be selected according to different frequencies, which can maximize the utilization of copper wire cross-section. The utilization ratio of copper wire cross-section is the largest
Estimate winding DC resistance and I²R loss from conductor dimensions, length, current and copper temperature.
Estimate DC copper lossDC copper loss does not include AC winding loss, core loss or a temperature-rise prediction.
