What Are ferrite cable core?
A ferrite cable core acts as a crucial barrier against electromagnetic interference (EMI). Its magic lies in its frequency-dependent impedance. At low frequencies, where your valuable data and power signals operate, the ferrite core presents a very low impedance, allowing them to pass through unaffected.
However, when faced with high-frequency noiseโoften generated by switching power supplies, motors, or digital processorsโthe core’s impedance rises dramatically. It effectively acts as a common-mode choke, absorbing and dissipating this unwanted noise as heat, ensuring it never reaches and disrupts your sensitive electronics.

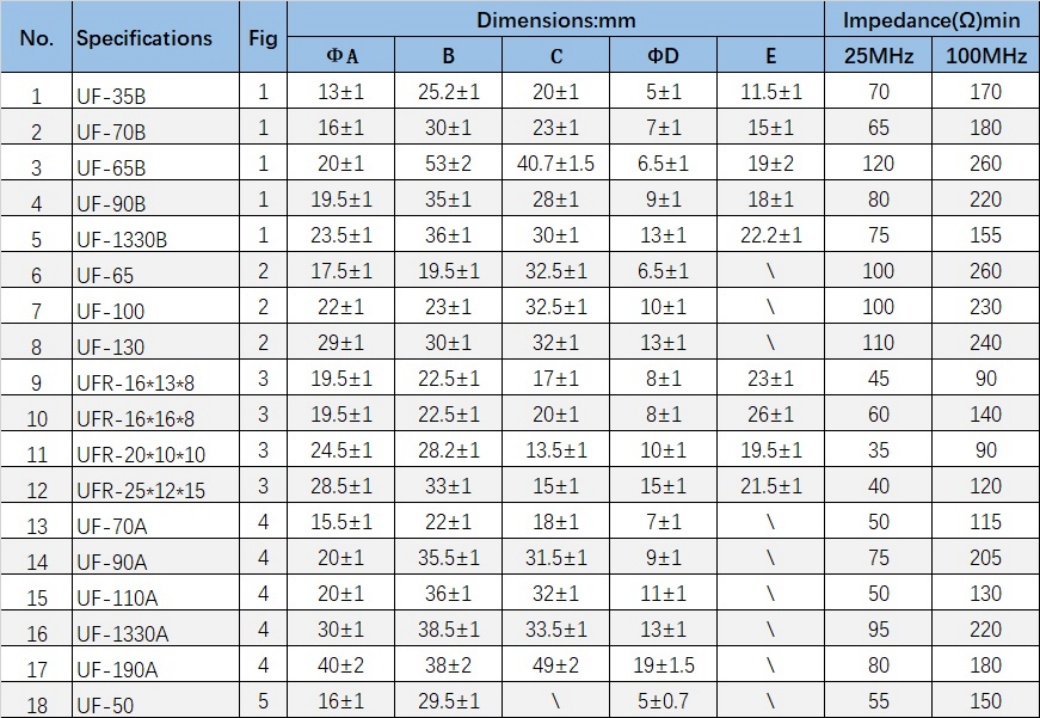

Our Standard Ferrite Cable Core Selection
Below is a selection of our most commonly requested clamp-on and solid ring cores. We stock a wide variety of materials and sizes to target specific noise frequencies. Contact us if you don’t see the exact specifications you need.

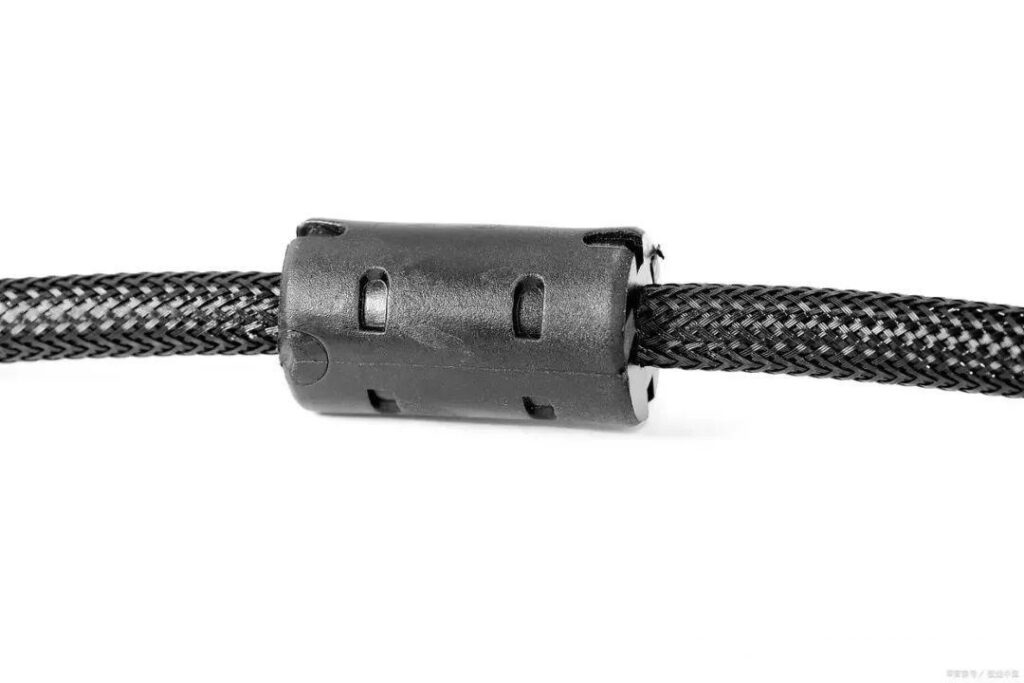

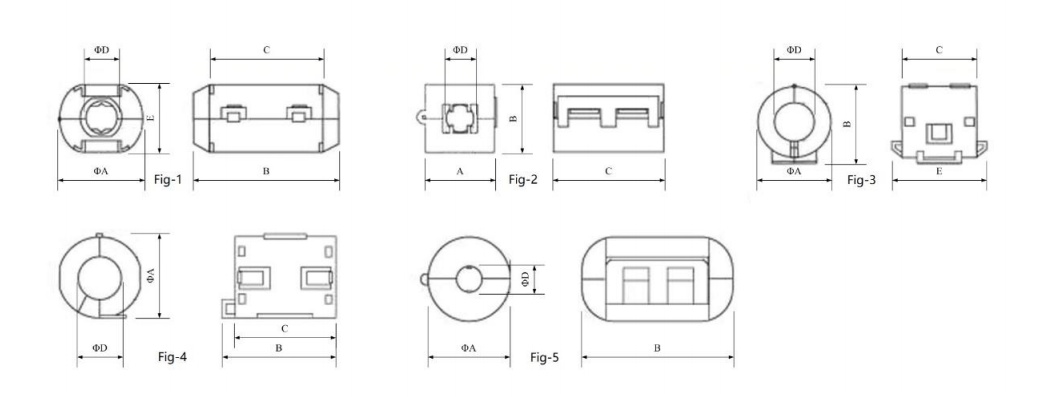

The UF/UFR type ferrite cable core, also known as the clip-on magnetic ring, buckle-type magnetic ring, snap-on magnetic ring, clip-on magnetic ring, assembled magnetic ring, etc., is a type of anti-interference magnetic ring in the ferrite magnetic ring series.
How to Choose the Right Ferrite Core
Selecting the optimal core is key to effective noise suppression. Our engineering team can help, but here are the primary factors to consider:
Required Impedance
Flexible Installation for Broad Applications
Simple to Implement, Powerful Results
Our ferrite cores are designed for easy integration into new designs or for retrofitting existing systems to pass EMC testing.

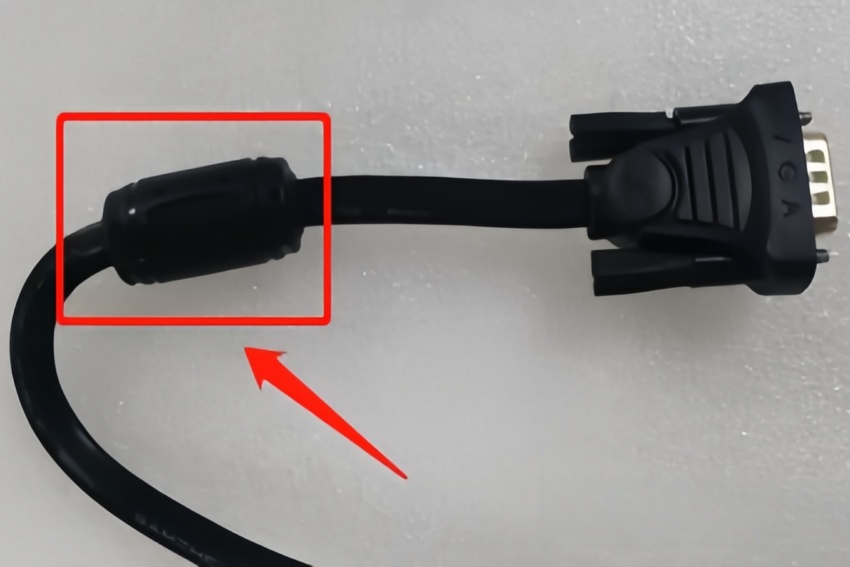

Snap-On Cores: Feature a convenient installation clip, allowing you to attach them to power and signal lines without disconnecting anything. Perfect for field service and final-stage troubleshooting. Solid Ring Cores: Ideal for integration during assembly. Winding the cable through the core multiple times can significantly increase the impedance and noise absorption.
Related Products
Contact Our Support Team
FAQs
A ferrite cable core, also known as an EMI/RFI filter core, is a passive electronic component used to suppress high-frequency noise on a cable. It acts as a common-mode choke, effectively filtering out unwanted electromagnetic interference (EMI) and radio-frequency interference (RFI) without affecting the low-frequency power or data signal traveling through the cable.
The choice of material depends on the frequency of the noise you need to suppress:
- Manganese-Zinc (Mn-Zn): This material is most effective for lower frequency ranges, typically from 1 MHz to 300 MHz. It’s commonly used on power supply lines.
- Nickel-Zinc (Ni-Zn): This material is ideal for higher frequency ranges, generally from 30 MHz to over 1 GHz. It’s often used for data cables like USB, HDMI, and Ethernet.
If you are unsure, our engineering team can help you select the optimal material based on your application’s noise profile.
No. A correctly chosen ferrite core will not impact your data speeds. The ferrite’s material composition is specifically designed to have high impedance at high (noise) frequencies but very low impedance at the lower frequencies used for data transmission. This allows your desired signal to pass through unimpeded while the unwanted noise is filtered out.
