Electromagnetic Coils Manufacturing - JHCOILS
JHCOILS reviews custom electromagnetic windings for actuator, sensor and magnetic assemblies. Define the coil envelope, conductor, core interface and electrical targets to establish what the supplied component must do.
Define the Winding and Magnetic Assembly
Specify whether the order covers a winding alone or a coil with a bobbin, core, leads and mounting parts. Include the drive waveform and magnetic interface when field, force or response is part of the requirement. The complete assembly, not the coil name, determines application performance.
Applications
Use the application descriptions below to identify the information needed for a component review. They do not establish an application qualification or a complete equipment capability.
Electromagnets

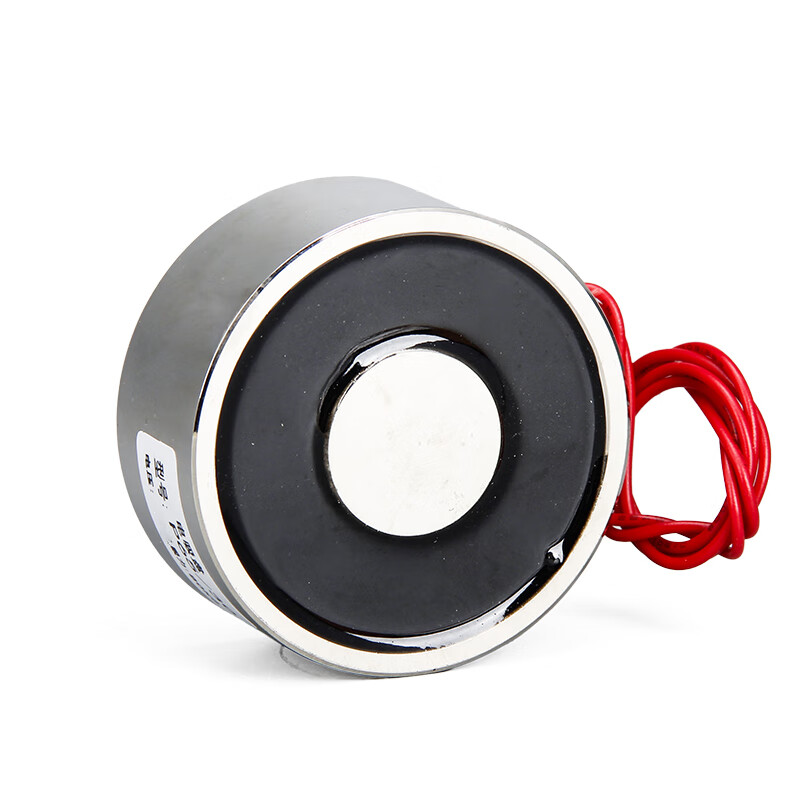

Provide the magnetic assembly drawing, supply and current duty, working gap and required test method. Confirm the supplied winding scope separately from lifting or holding-force validation.
Electromagnetic Brakes

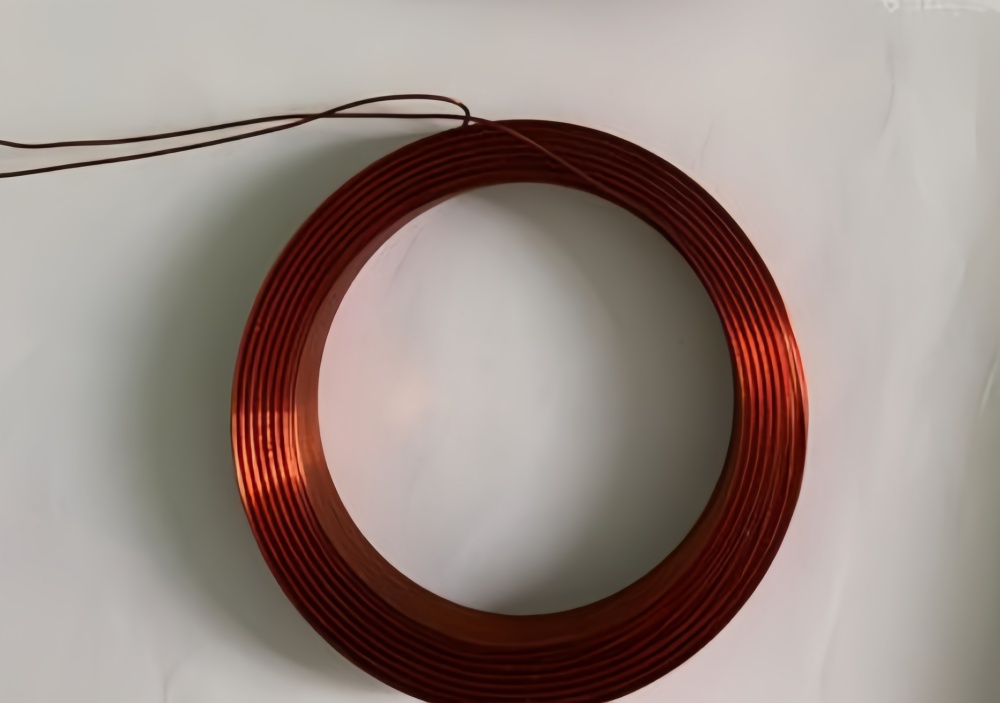

Specify the brake winding, lead interface, thermal duty and acceptance tests. Safety and fail-safe behavior must be established for the complete brake system.
Solenoid Valves
Send the bobbin, terminal and mating magnetic-part drawings with the supply and duty requirements. Review custom solenoid coils for the valve-coil specification.
Sensor and Instrument Windings

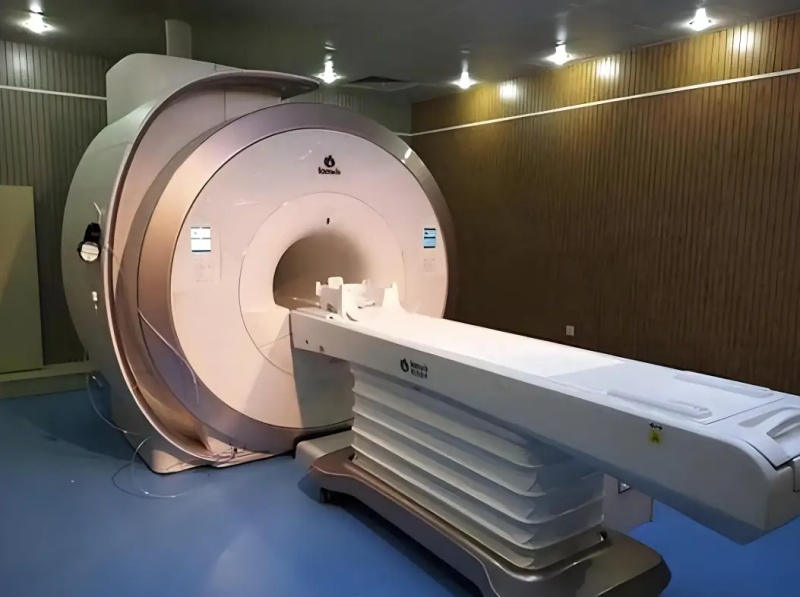

Provide the winding geometry, sensitivity or inductance requirements, shielding interfaces and measurement fixture. Specialized medical-imaging coil capability is not established by this page.
Speakers & Microphones
For an audio winding, specify the wire, former, moving mass, lead arrangement and electrical and thermal acceptance limits. Acoustic performance is evaluated in the complete device.
Transformer Coil
Provide the winding schedule, core and bobbin interfaces, insulation boundaries and electrical test plan. Review bobbin windings or toroidal transformer windings for the appropriate structure.
Project Requirements for a Custom Electromagnetic Coil
Use a controlled drawing and agreed test plan to connect the winding specification with the assembly requirement. Record unresolved material, interface and qualification questions before quoting.
Electrical and Thermal Inputs
State voltage or drive waveform, current duty, resistance and inductance limits, and thermal conditions. Include the fixture and test method for each acceptance value.
Manufacturing and Assembly Scope
Identify who supplies the wire, core, bobbin, connector and housing. Mark the interfaces, lead routing and any excluded assembly operations on the drawing.
Material and Compliance Documents
Request current material declarations or certification evidence for the applicable scope and part. A generic factory statement does not establish RoHS, REACH or product qualification for every winding.
Sample Approval and Change Control
Approve the sample measurements, drawing revision and bill of materials. Review material or process changes before they are used for a production order.
Frequently Asked Questions about Electromagnetic Coils
Common questions
What AC or DC information is needed?
Provide the actual supply waveform, frequency, voltage tolerance and duty. Core material and construction depend on the magnetic and loss requirements; AC operation does not imply one universal core type.
How is reliability assessed?
Define the temperature, mechanical and environmental tests for the intended assembly. Agree sample qualification and production inspection separately, including any potting or impregnation requirements.
How should RoHS or REACH requirements be specified?
Identify the applicable documentation and part number in the inquiry. Confirm evidence for the selected materials and supplied assembly before approval; no blanket compliance is implied.
What is needed for a custom quote?
Send the winding drawing, wire and core requirements, drive conditions, electrical test limits, lead interfaces, sample quantity and expected order volume.
Get Free Quote
Send the winding drawing and assembly requirements for a component review.
Approve the Coil Specification Before Production
1. Describe the Magnetic Assembly
Show the coil envelope, mating parts, drive waveform and required electrical or mechanical tests.
2. Confirm the Winding Scope
Review wire and support materials, lead preparation, sample checks, tooling and quotation timing.
3. Release the Approved Revision
Confirm sample results, drawing revision, inspection requirements and order schedule before production.
