Product Description
Inductive coupling: Good coupling are need between transmitter coil and receiver coil. Current in transmitter generates alternating magnetic field, which causes alternating voltage in receiver coil, thus the power can be transmitted.The characteristics of the transmitter and receiver coils are crucial to achieve low power transmission losses. The proper selection and positioning of the transmission and receiver coils has a major influence on the efficiency of the energy transmission.
Material of ferrite sheet
- Material compliance with Qi standard
- Thickness 0.3-2.5mm.
- Can be slotted and punched.
Material of winding wire
- Several Standard Multi-wire 0.3mm*2P 0.3mm*3p.
- Several enamelled wire. Litz wire
Wireless charging Receiver coils is once used for more wireless charging patch device, which can make non-support wireless charging phone can charging wireless. But with the leading effects of Samsung and Iphone, more and more phone brand will build in the wireless charging receiver mould into phone.
MPA Transmitter coils Series
| Products | Datasheet | Product Code | Description | Founction | Ask for sample |
|---|---|---|---|---|---|
 |  Check it | JH-H10-R-C1-S | Name:WPC Wireless Power Transfer Receiver Coil Layer:2 Layer, Standard:QI/WPC Inductance:13.2uH±10% | Receiver coil | Contact Us |
 Enlarge |  Check it | JH-H10-R-C2-S | Name:WPC wireless receiver coil Module Layer:2 Layer, Standard:QI/WPC Inductance:18uH±10% | Receiver coil | Contact Us |

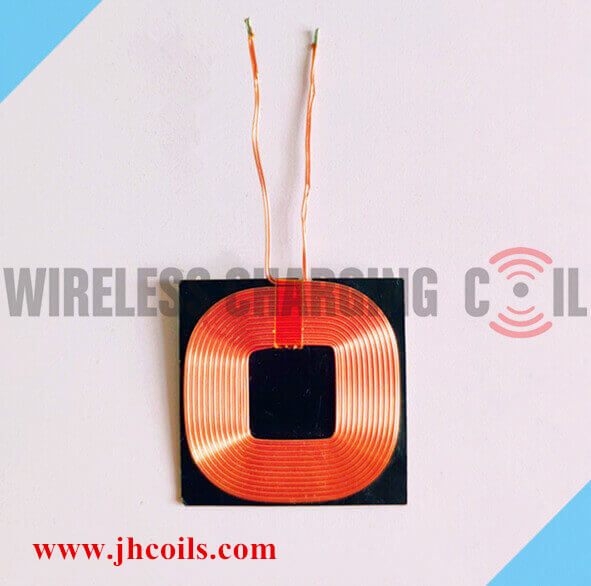

 Enlarge |  Check it | JH-H13-R-C3-S | Name:8 μH ±10% Ferrite Charging Receiver Coil Layer:2 Layer, Standard:QI/WPC Inductance:8uH±10% | Receiver coil | Contact Us |

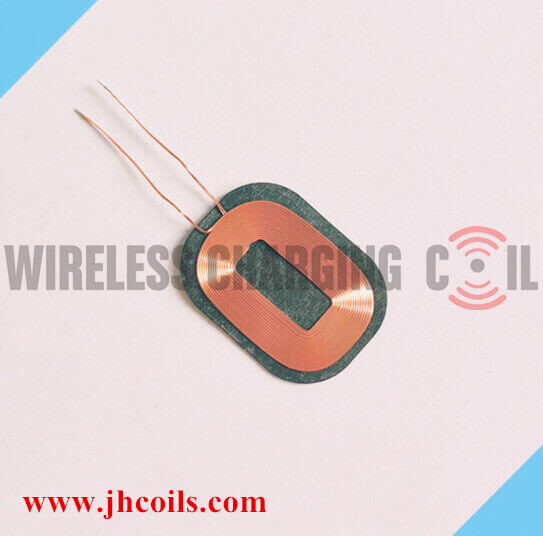

 Enlarge |  Check it | JH-H10-R-C4-S | Name:Qi Wireless Coils Reveiver Coils Layer:2 Layer, Standard:QI/WPC Inductance:12.5uH±10% | Receiver coil | Contact Us |
 Enlarge |  Check it | JH-H10-R-C5-S | Name:15W Wireless Charging Receiver Coil Layer:1 Layer, Standard:QI/WPC Inductance:8.0uH±10% | Receiver coil | Contact Us |
 |  Check it | JH-H10-R-C6-S | Name:Copper Wire Wireless Charging Receiver Coil Layer:1 Layer, Standard:QI/WPC Inductance:14uH±10% | Receiver coil | Contact Us |
 |  Check it | JH-H17-R-C7-R | Name:Small size wireless Charging receiver coil Layer:2 Layer, Standard:QI/WPC Inductance:7uH±10% | Receiver coil | Contact Us |

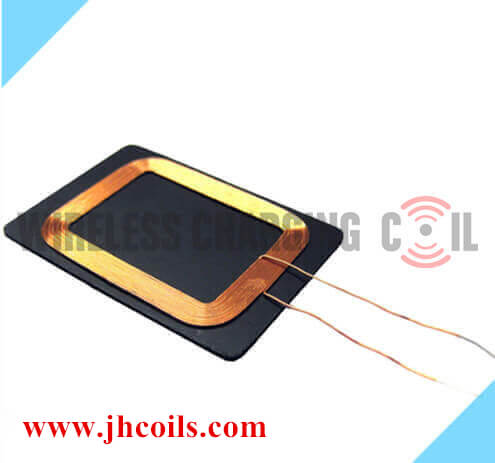

 |  Check it | JH-H17-R-C8-S | Name:Qi Wireless Charger Receiver Coil Design Layer:1 Layer, Standard:QI/WPC Inductance:7uH±10% | Receiver coil | Contact Us |

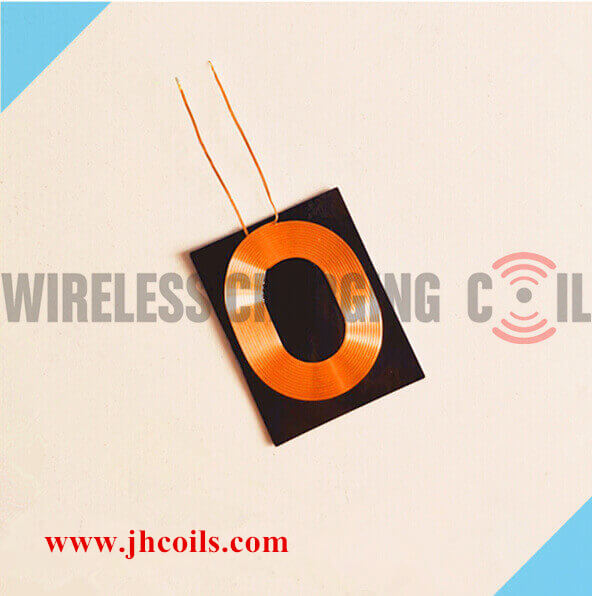

 |  Check it | JH-H10-R-C9-S | Name:15W Wireless Receiver Coil Design R C09 Layer:1 Layer, Standard:QI/WPC Inductance:11.2uH±10% | Receiver coil | Contact Us |
