JHCOILS: Professional Supplier of Transformer Ferrite Core

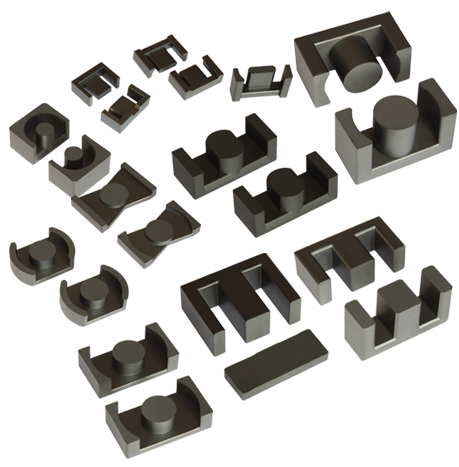

Due to years of experience in the field of inductive components, JHCOILS currently supply a wide range of high frequency ferrite core in a variety of types.
Types of Ferrite Core
MnZn ferrite Cores are mainly grouped into two types:
One is power ferrite cores, which are mostly used for compact transformers;
Another one is high-permeability ferrite cores, which are widely used for digital communication pulse transformers(signal transformers).
One is power ferrite cores, which are mostly used for compact transformers;
Another one is high-permeability ferrite cores, which are widely used for digital communication pulse transformers(signal transformers).
Material of Ferrite CORE
MnZn ferrites are a class of soft magnetic materials that have very good electrical and magnetic properties. MnZn ferrite core is consisting of a combination of iron oxide,manganese oxide and zinc oxide. The advantageous properties of MnZn ferrites include high value of resistivity, permeability, permittivity, saturation magnetization, low power losses and coercivity. The above mentioned advantageous features of MnZn ferrites make them suitable for the use in various applications. MnZn ferrites are used widely in electronic applications for making transformers, transducers and inductors.
Main Products

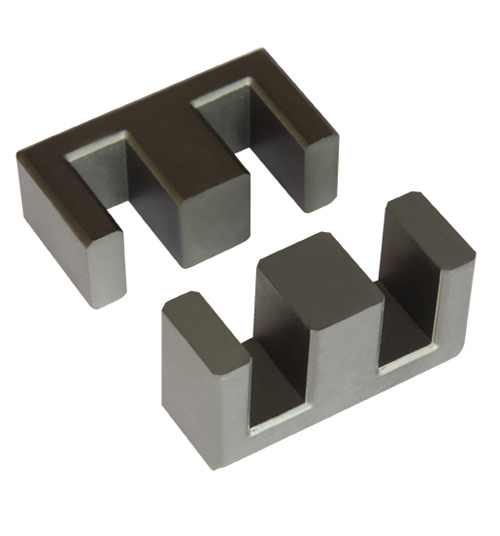

EE Magnetic Core for Transformer
Features: High saturation magnetic flux density, High Inductance.
Application: Switching power supply transformers, chokes, inverters, converters, pulse transformers
EC/ETD Magnetic Core for Transformer
Features: it is easy for wire winding because of the round structure at middle, easy desgin for relative higher power transformer
Application: Different kind of Switching power supply transformers

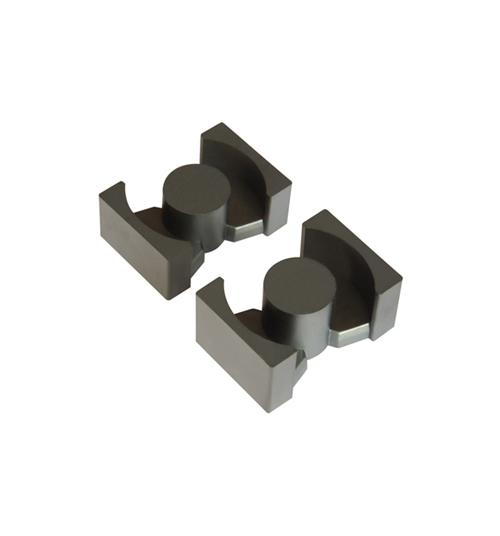

PQ Magnetic Core for Transformer
Application: Suitable for high-density installation, High permeability
Application: Switching power supply transformers, chokes,
POT Magnetic Core for Transformer
Features: Higher shielding effect, higher inductance; high inductive resistance
Application: Carrier frequency filter, different types inductor and transformer
EPC Magnetic Core for Transformer
Featuers: Suitable for horizontal installation to reduce product height, Conducive to transformer-intensive bonding
Application: Suitable for low power switch
EFD Magnetic Core for Transformer
Featuers: Suitable for horizontal installation to reduce product heightL, Conducive to transformer-intensive bonding
Application: Suitable for low power switch

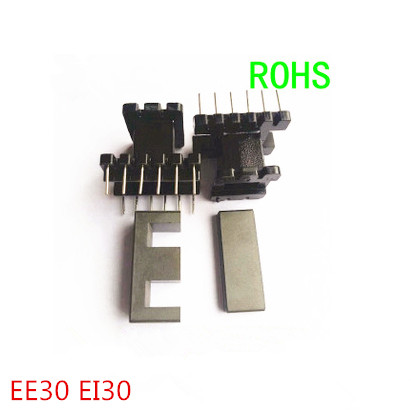

EI Magnetic Core for Transformer
Features: High saturation magnetic flux density, High Inductance.
Application: Switching power supply transformers, chokes, inverters, converters, pulse transformers

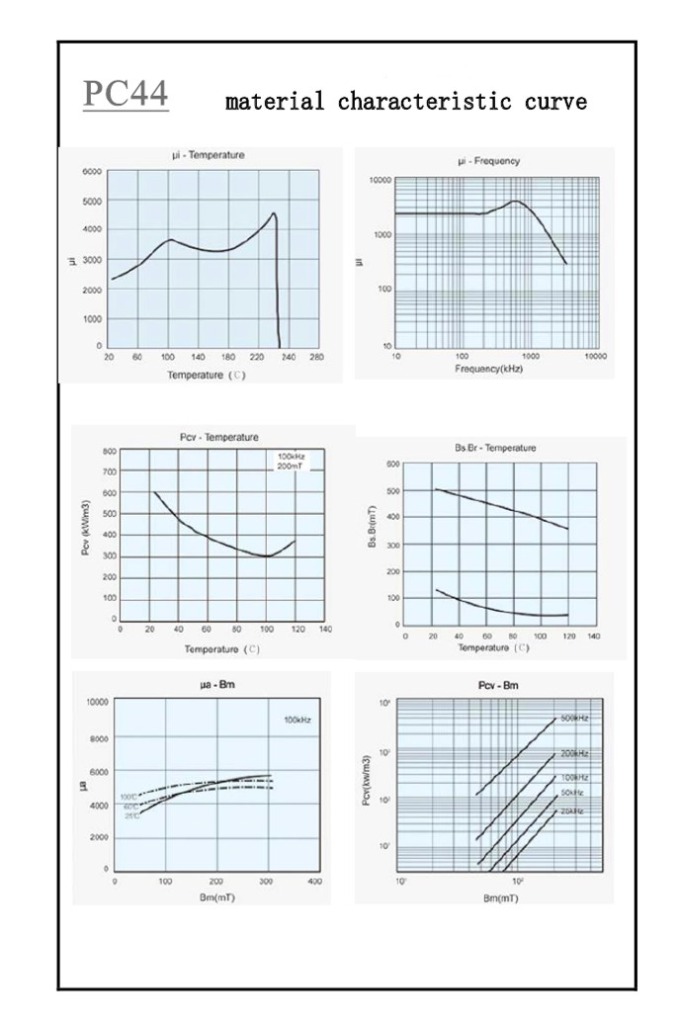

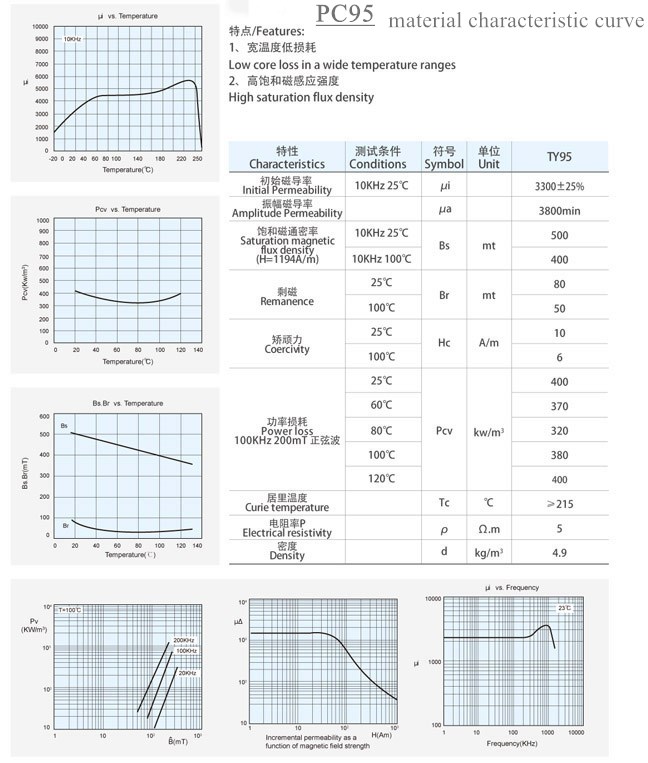

Material curve
- Mostly used at middle frequency, less than 300kHz.
- High Saturation flux density and low core loss.
- The lowest point of power loss is at 90ยฐ
- Low Power loss in a wide range of temperature
- High Stauration flux density
- High Stauration flux density
About Us
Due to years of experience in the field of inductive components, JHCOILS currently supply a wide range of high frequency ferrite core in a variety of types like: EE Ferrite Core, EC Ferrite core
PQ Ferrite Magnetic Core, POT Ferrite core, EPC Ferrite core
EFD Ferrite core, EI Ferrite core.
Our products are widely used in a large variety of industries, such as LED Green lighting, Switch-mode power supplies, Data transmission, Telecommunications, Measuring instruments, Interference suppression, Antennae technology, Inductive sensors, Medical technology, Green alternative energy, The automotive industry, Telecommunication, Professional broadcasting technology, Medical technology and Video technology, as well as in electronic data-processing facilities.
