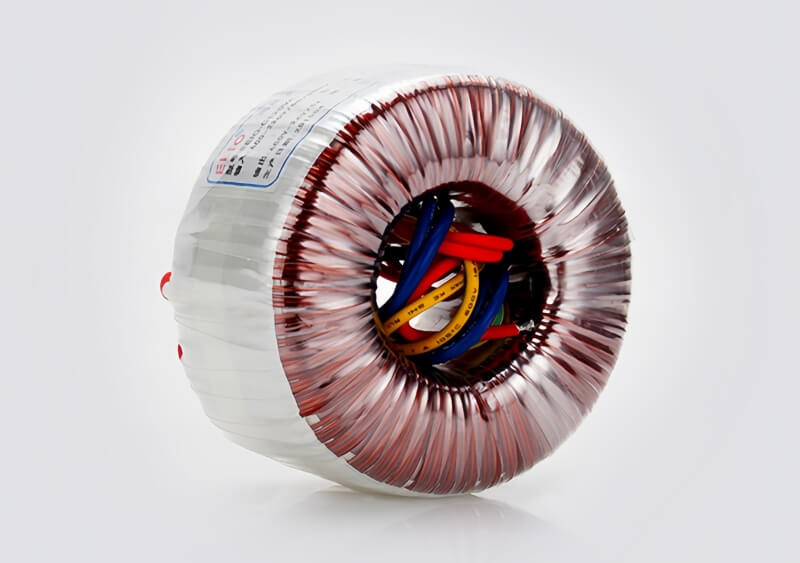

What is a Toroidal Transformer?
A toroidal transformer is a type of power transformer built around a doughnut-shaped (toroidal) magnetic core. Unlike conventional transformers with E-I or C-cores, the toroidal design offers an inherently superior magnetic circuit. The core is a continuous loop without air gaps, and the windings are distributed uniformly across its entire circumference. This unique geometry results in a highly efficient, compact, and low-noise component.
At JHCOILS, we have mastered the art and science of toroidal coil winding, making us the preferred toroidal transformer manufacturers for applications where performance cannot be compromised.
The Toroidal Coil Advantage: A Clear Comparison
Why do engineers overwhelmingly choose toroidal transformers for high-performance applications? The benefits are clear when compared to traditional alternatives.
| Feature | Toroidal Transformer | E-I (Square) Transformer | Switching Power Supply (SMPS) |
|---|---|---|---|
| Efficiency | Very High (95-98%) | Moderate (85-90%) | High (80-95%) |
| Stray Magnetic Field (EMI) | Extremely Low | High | Very High (High-Frequency Noise) |
| Audible Hum/Noise | Virtually Silent | Audible Hum | High-Frequency Whine |
| Size & Weight (for same VA) | Small & Light | Large & Heavy | Very Small & Light |
| Lifespan & Reliability | Extremely Long | Long | Shorter (More components to fail) |
| No-Load Current | Very Low | Moderate to High | Low |
Custom Toroidal Transformer Selection Guide
To engineer the perfect toroidal transformer for your project, our engineers need a few key specifications. Providing this information will ensure a fast and accurate quote.
Essential Parameters (Must-Provide):
- Input Voltage & Frequency: e.g., 230V AC @ 50Hz, 120V AC @ 60Hz.
- Output Voltage(s): Specify all secondary windings and their voltage (e.g., 2 x 24V AC). Please note if this is a no-load or full-load voltage requirement.
- Output Power (VA) or Current (Amps): Provide the power or current required for each secondary winding.
- Lead Wire Length & Type: Specify the required length and any connector types.
Optional Parameters (We can optimize for you):
- Maximum Diameter & Height: Provide any physical space constraints.
- Mounting Method: Standard is a central potting with a single bolt. Let us know if you have special requirements.
Application Spotlight: Audio & Medical
High-Fidelity Audio Amplifiers
In the world of audiophiles, clean power is paramount. The toroidal transformer’s extremely low stray magnetic field prevents the injection of 50/60Hz hum into sensitive audio circuits. This results in a “blacker” background, improved dynamic range, and purer sound reproduction. As specialist audio toroidal transformer manufacturers, we understand these nuances.
Sensitive Medical Devices
For medical equipment used near patients, low stray field is a critical safety requirement (e.g., IEC 60601-1). Our toroidal transformers ensure that sensitive sensors are not affected by electromagnetic interference, guaranteeing accurate readings and safe operation in hospitals and labs.
Toroidal Transformer Manufacturing Process
Automated High-Efficiency Winding

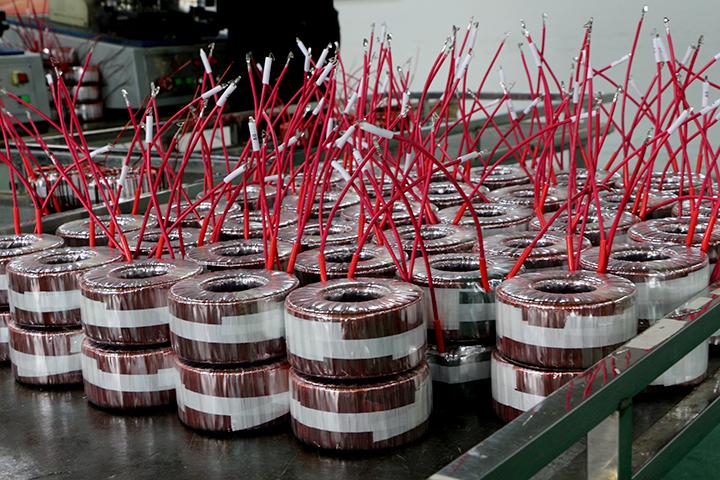

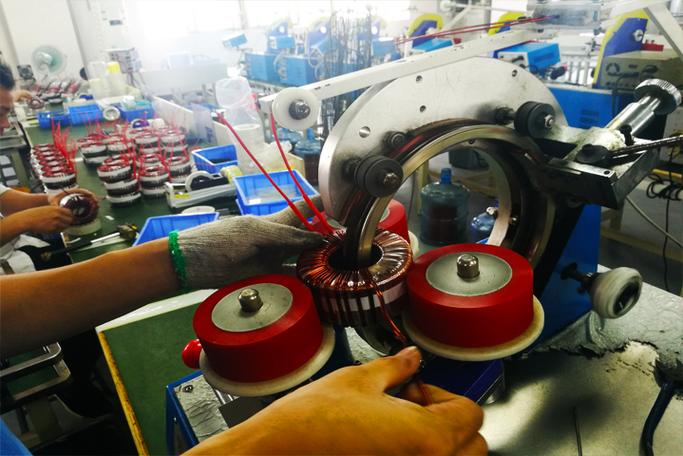

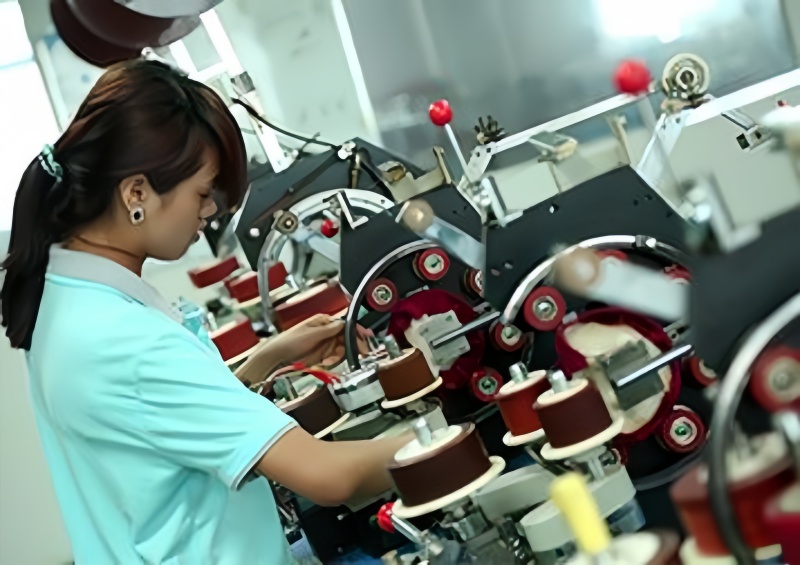

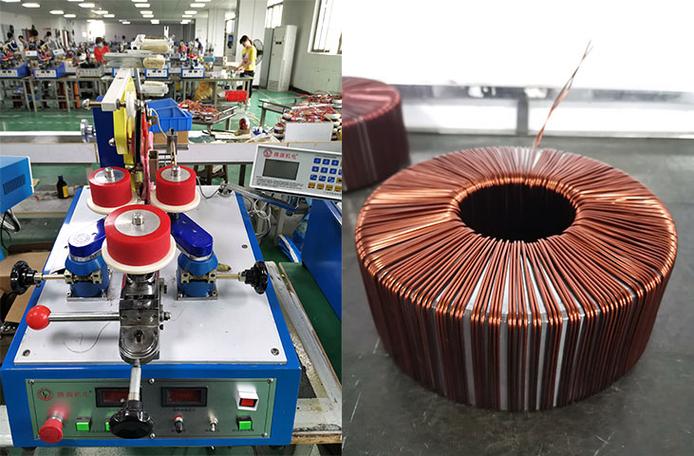

All toroidal transformers are produced using fully automatic winding machines, ensuring excellent consistency, precision, and production efficiency. With advanced automation equipment, we are capable of producing over 1,000 toroidal transformers per day, widely used in industrial automation and control systems.
Superior Insulation Protection
After winding, coils are insulated using an automatic tape-wrapping process. We apply DuPont insulating film, offering outstanding dielectric strength, high temperature resistance, and long-term insulation stability to ensure reliable operation in demanding environments.

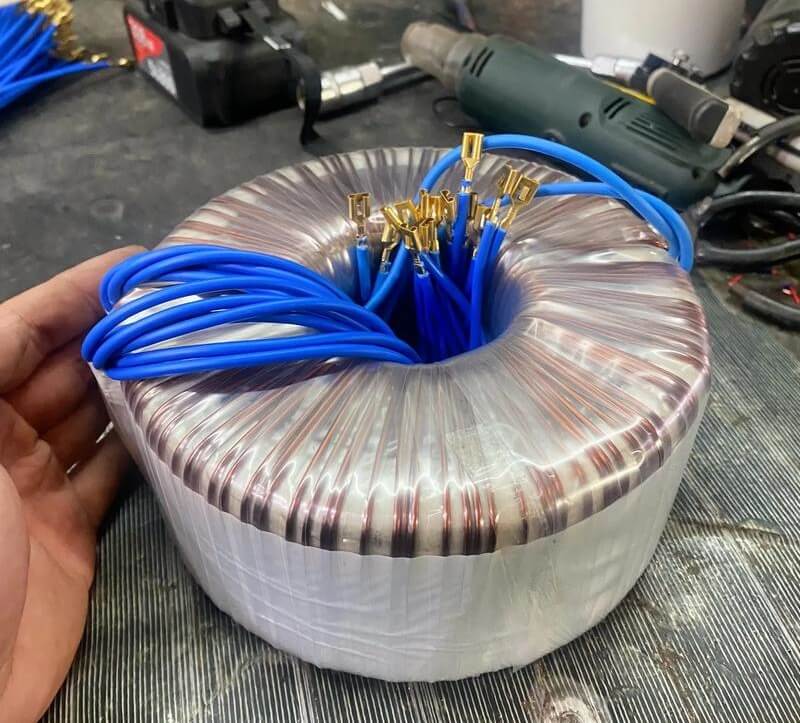

Mature Process & Custom Manufacturing Expertise
Our manufacturing process is well-established and carefully controlled, with meticulous attention to details such as winding quality, wire routing, and terminal connections. We have extensive experience in the custom design and mass production of special-purpose toroidal transformers, particularly for complex and customized automation control applications.
Comprehensive Testing & Quality Assurance
To guarantee performance and safety, every transformer is subjected to a full range of inspections and tests, including: Surge (impulse) testing Dielectric withstand (Hi-Pot) and insulation resistance testing Inter-layer insulation testing Electrical performance parameter testing Load testing and aging (burn-in) tests With complete testing equipment and strict quality control procedures, we ensure that every product delivered meets high standards of reliability, safety, and long service life.
Your Partner for Reliable Power Solutions
Choosing JHCOILS means choosing a partner committed to your success.
Engineering Expertise
Our R&D team works directly with you to understand your challenges and design a toroidal transformer that is perfectly optimized for performance, cost, and size.
Commitment to Sustainability
The high efficiency of our toroidal coils means less wasted energy, reducing the carbon footprint of the end product and aligning with modern green design standards.
Dependable Global Delivery
Our streamlined logistics and robust, shockproof packaging ensure your transformers arrive safely and on schedule, anywhere in the world.
Related Products
Contact Our Support Team
FAQs
Toroidal transformers can have a higher inrush current upon startup compared to E-I cores. This is due to their high-efficiency core which can retain residual magnetism. For sensitive applications, we can recommend or incorporate soft-start circuits to manage this.
Yes. As custom toroidal transformer manufacturers, we can embed a thermal cutout in the primary winding for over-temperature protection. We can also integrate in-line fuses as required by your design or safety standards.
A toroidal transformer is designed for power conversion, with at least one primary and one secondary winding to change voltage levels. A toroidal inductor (or choke) has a single winding and is designed to store energy or filter noise in a circuit.
Absolutely. We can fully encapsulate the transformer in a plastic or metal housing using thermally conductive epoxy. This provides maximum protection against moisture, vibration, and mechanical shock, and is ideal for harsh environments.
