What is a Flat Wire Coil Inductor?
A flat wire coil inductor is an advanced magnetic component that replaces traditional round magnet wire with a precisely engineered rectangular or “flat” wire. This seemingly simple change in geometry unlocks significant performance advantages, particularly in high-current and high-frequency power applications.
The primary benefit of flat wire is its ability to achieve a much higher copper fill factor within a given winding window. This drastically reduces DC Resistance (DCR), minimizes power loss, and allows the inductor to handle significantly more current without overheating. At JHCOILS, we transform these principles into tangible, reliable components that solve critical engineering challenges.
The Unmistakable Advantages of Flat Wire
Lower DC Resistance (DCR)
By eliminating the empty space between turns that exists with round wire, flat wire achieves a superior fill factor. This leads to significantly lower DCR for the same inductance value, reducing IยฒR power losses and improving overall efficiency.
Higher Current Capacity
Lower DCR and a larger conductor surface area for heat dissipation mean our flat wire inductors can handle up to 50% more current than a round wire equivalent of the same size, enabling more compact and powerful designs.
Reduced Skin Effect
At high frequencies, current flows only on the outer “skin” of a conductor. The large surface area of flat wire provides more skin area than round wire, effectively reducing AC resistance and maintaining efficiency at higher switching frequencies.
Powering the Future: Key Applications
Flat wire coil inductors are indispensable in modern power electronics where efficiency, thermal performance, and power density are paramount.
Renewable Energy Systems
Electric Vehicles (EV) & Automotive
High-Power SMPS & Telecom
Advanced AIW Flat Enameled Wire

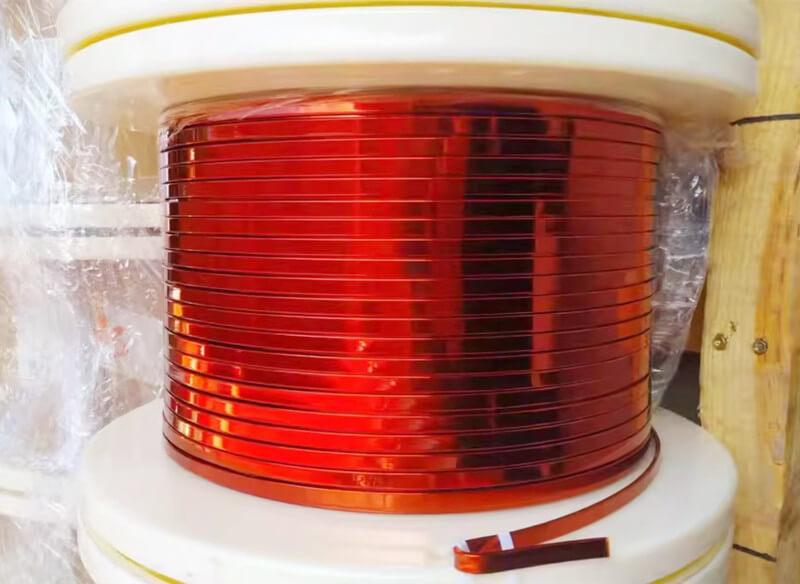

The foundation of our inductors is the premium AIW (Polyamide-imide) flat enameled copper wire we use. This material is chosen for its exceptional properties:
- Thermal Class 200ยฐC: The AIW insulation can withstand continuous operating temperatures of up to 200ยฐC, ensuring reliability in thermally stressful environments like automotive engine compartments or densely packed power supplies.
- Excellent Dielectric Strength: The tough Polyamide-imide coating provides high voltage insulation between turns, preventing short circuits even under high potential stress.
- Mechanical Robustness: The enamel is highly resistant to abrasion and chemicals, ensuring the wire's integrity during our precision winding process.

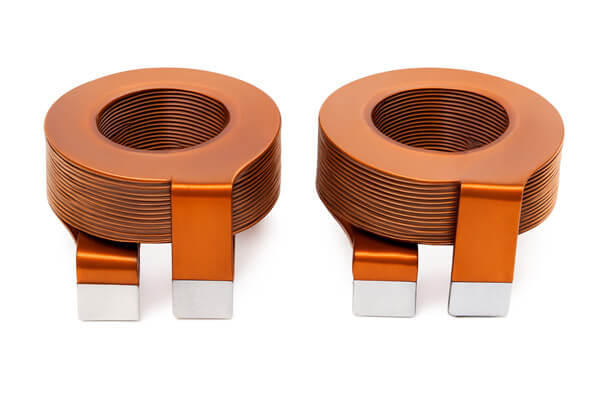

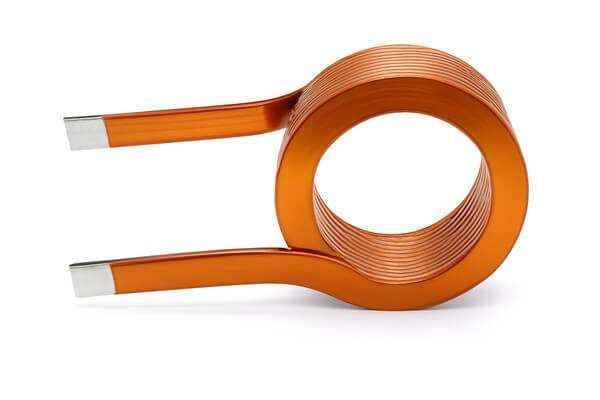

Our Standard Flat Wire Coil
With over 20 fully automatic winding machines and a team of expert engineers, our process is optimized for quality, consistency, and speed.

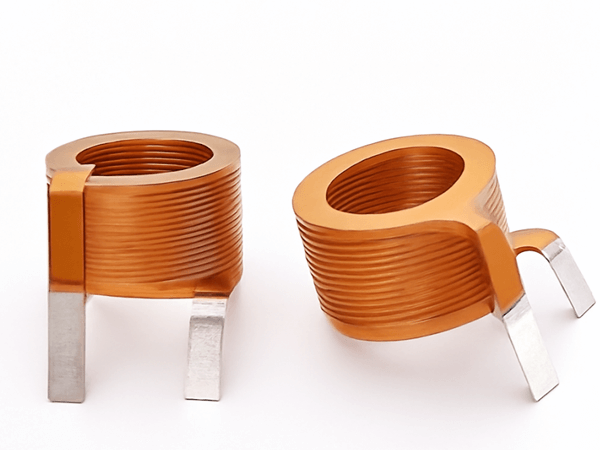

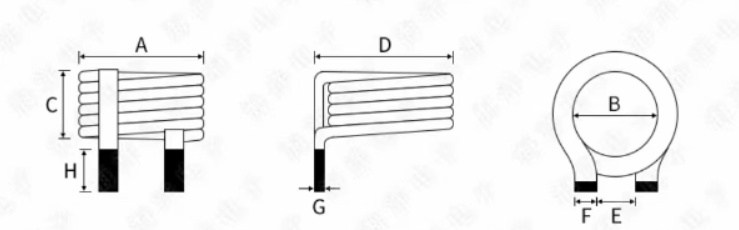

0.2x1.4x4.5x18.75T

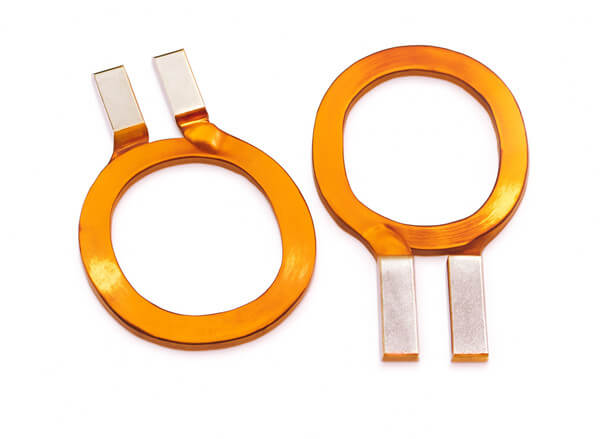

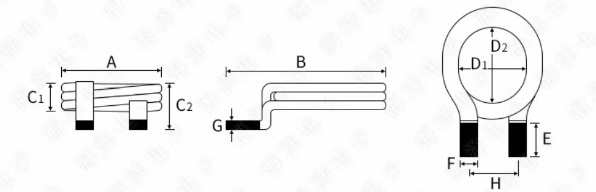

0.4x45x20.5x25.5X3T

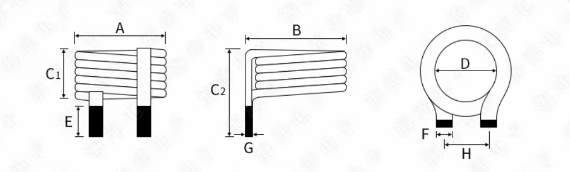

0.6x8x17x15T

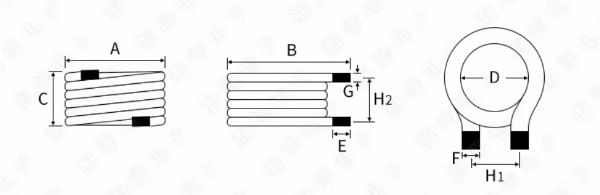

1.2x5x20.5x10T
Fully Customized to Your Specifications
Standard parts rarely solve complex problems. We specialize in creating custom flat wire coil inductors tailored to your exact needs.

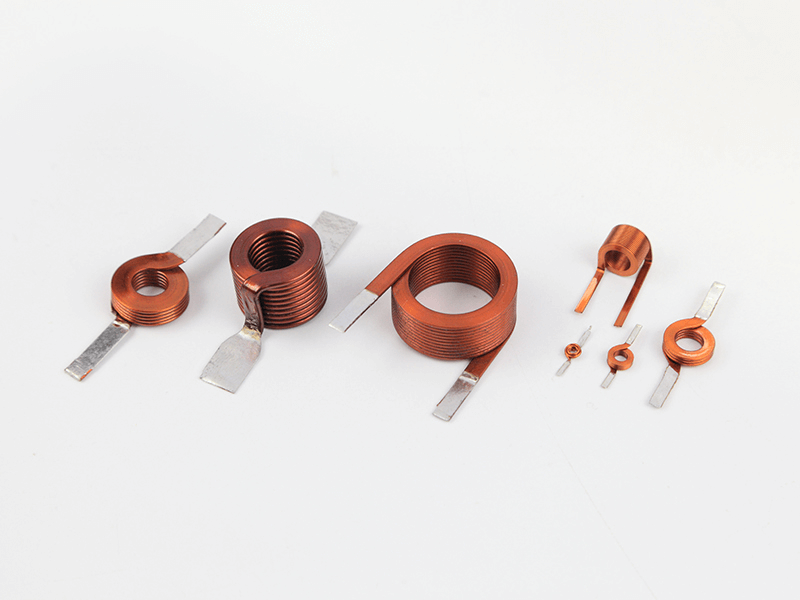

- Custom Shapes: We can produce round, square, rectangular, and even figure-8 or racetrack-shaped coils to fit unique form factors.
- Core Integration: We wind directly onto toroidal cores, E-cores, pot cores, or create air-core flat wire coils for specific high-frequency needs.
- Termination Options: We offer flying leads, radial or axial pins, or integrated mounting brackets to simplify your assembly process.
Related Products
Contact Our Support Team
FAQs
Generally, flat wire shows significant benefits in applications requiring 20A or more. At these levels, the reduction in DCR and improved thermal performance become critical factors for system efficiency and reliability.
Lead times depend on complexity and material availability, but typically, we can deliver initial prototypes within 2 weeks after design finalization.
Yes. While copper is standard due to its higher conductivity, we can and do produce flat wire inductors using enameled aluminum for applications where minimizing weight is the absolute top priority, such as in aerospace.
