What Are Self-Supported Coils?
Self-supported coils are electromagnetic windings that maintain their shape and structural integrity without a bobbin, frame, or core. The “magic” lies in the use of self-bonding magnet wire. This wire has a special adhesive topcoat that, when activated by heat or a solvent, fuses the adjacent turns of wire together, creating a rigid, monolithic, and freestanding coil structure.
Because they have no magnetic core material, they are also known as self-bonding air-core coils. This design eliminates core losses (hysteresis and eddy currents), making them ideal for high-frequency applications where efficiency and a high Quality Factor (Q-factor) are paramount.
Key Advantages of Self-Bonding Air-Core Coils
Design Freedom & Miniaturization
The absence of a bobbin allows for complex shapes and smaller, more compact designs that fit into tight spaces. This is critical for modern consumer electronics, wearables, and medical devices.
Lightweight & High Q-Factor
With no heavy ferrite core, these coils are exceptionally lightweight. The air core also results in very low losses at high frequencies, leading to a superior Q-factor and better overall performance.
Superior Stability & Vibration Resistance
The fused, monolithic structure makes the coils incredibly robust and resistant to mechanical shock and vibration, ensuring consistent electrical properties even in harsh operating environments.
Applications Across Innovative Industries
The unique properties of self-supported coils make them the preferred choice for a wide range of cutting-edge technologies.
Medical Devices & Sensors
Linear Motor & Actuator Coils
Brake & Switch Coils
High-Frequency Inductors
The Technology Behind the Wire

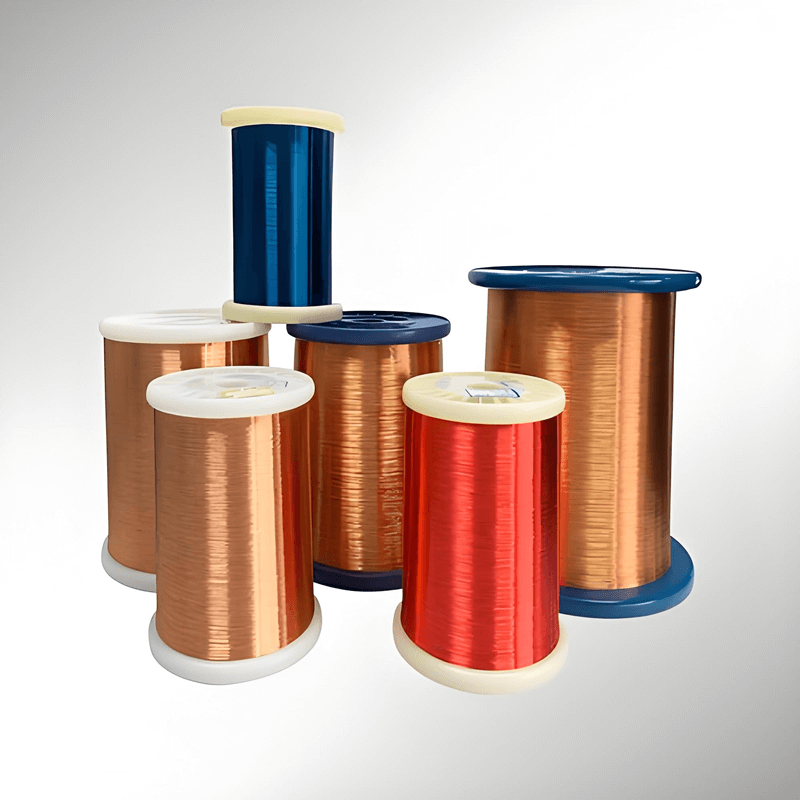

The success of a self-supported coil is entirely dependent on the quality of the self-bonding wire. We source premium wires with multi-layer coatings from globally recognized suppliers.
- Conductor Core: High-purity copper for excellent conductivity.
- Base Insulation Layer: A primary coating (e.g., polyurethane, polyester-imide) providing dielectric strength and thermal resistance.
- Bonding Topcoat: A thermoplastic adhesive layer (e.g., polyvinyl butyral) that activates at a specific temperature.
- Certifications: All our standard wires are UL, RoHS, and REACH compliant.
Our Precision Manufacturing Process
With over 20 fully automatic winding machines and a team of expert engineers, our process is optimized for quality, consistency, and speed.
Design & Tooling
Over 100pcs Existing Coil Tooling

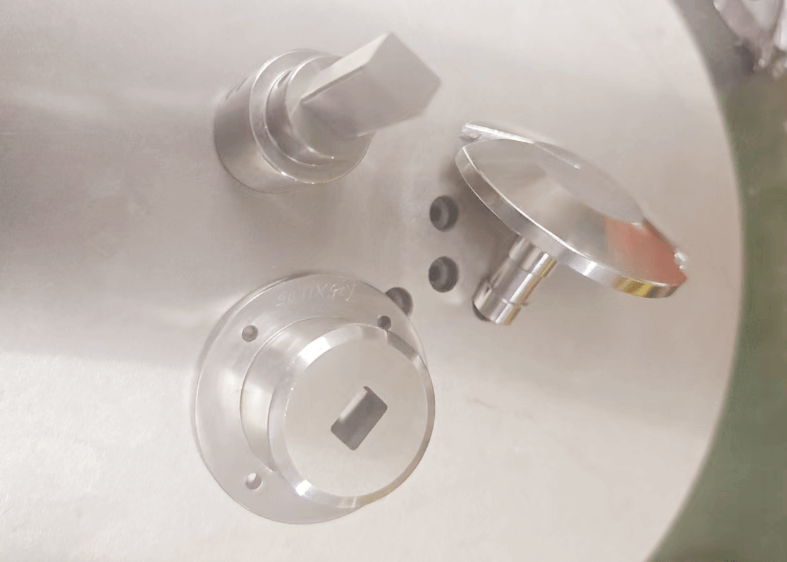

We begin by reviewing your specifications. A precision-machined arbor (winding tool) is created to define the coil's inner diameter and shape.
Automated CNC Winding
The self-bonding wire is wound onto the arbor by a CNC machine, which controls the wire tension, pitch, and number of turns with exceptional accuracy.
Bonding Activation
The wound coil (still on its arbor) is subjected to either controlled hot air flow or a specific solvent. This activates the bonding layer, fusing the wires into a solid unit.
Cooling & Demolding
After a controlled cooling period, the now-rigid, self-supported coil is carefully removed from the arbor.
Finishing & Testing
The coil leads are tinned, and each coil is 100% tested for key parameters like inductance (L), resistance (DCR), and Quality Factor (Q) using calibrated LCR meters.
Unmatched Customization Capabilities
We are not a catalog company. Every coil we produce is custom-made to our clients' exact specifications. Our flexibility is our strength.

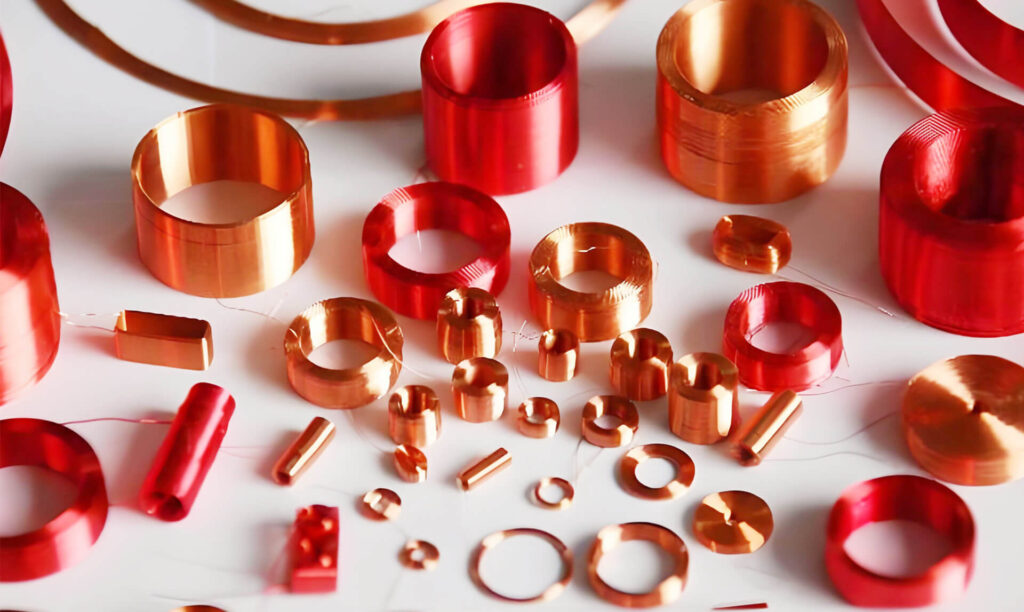

- Custom Shapes: Round, rectangular, square, flat/pancake, or complex multi-layered geometries.
- Small Batch Friendly: We welcome orders from single-piece prototypes to high-volume production runs.
- Rapid Prototyping: Our streamlined process allows us to deliver custom samples in as fast as 3 days.
- Fast Production: Standard production lead times are approximately 10 days after sample approval.
Related Products
Contact Our Support Team
FAQs
Heat-bonding uses hot air to activate the adhesive and is the most common method. Solvent-bonding uses a specific chemical (like alcohol) to activate the bond, which can be useful for temperature-sensitive applications or achieving specific mechanical properties.
They are surprisingly robust. Once bonded, the coil behaves like a solid piece of composite material, offering excellent resistance to deformation and vibration. The final strength depends on the wire size and bonding method.
Yes, it is possible but requires specialized techniques. Self-bonding Litz wire is available and is an excellent choice for very high-frequency applications like high-power wireless charging to minimize skin and proximity effect losses.
